- Chipset:Intel B660 Express
- CPU Interface:Socket 1700
- CPU Support:https://www.gigabyte.com/Motherboard/B660-DS3H-AX-DDR4-rev-10/support#support-cpu
- RAM Technology:DDR4 (Dual Channel)
- RAM Slots:4 x 288-pin
- RAM Speeds:Up to DDR4 3200
- Max. Memory Support:128GB
- PCI Express 3.0 x16:1
- PCI Express 4.0 x16:1
- S-ATA 6Gb/s Port(s):4
- RAID:Raid 0/1/5/10
- M.2 Socket(s):2 x PCIe Gen 4.0 x4
- On-Board LAN:Realtek GbE LAN chip (1 Gbps/100 Mbps)
- Wireless NIC:WIFI 6
- Wireless Technology:WIFI a/b/g/n/ac/ax supporting 2.4/5/6 GHz carrier frequency bands
- Bluetooth:v5.2
- On-Board Audio:Realtek Audio CODEC
- On-Board Video:Intel processor with integrated graphics is required

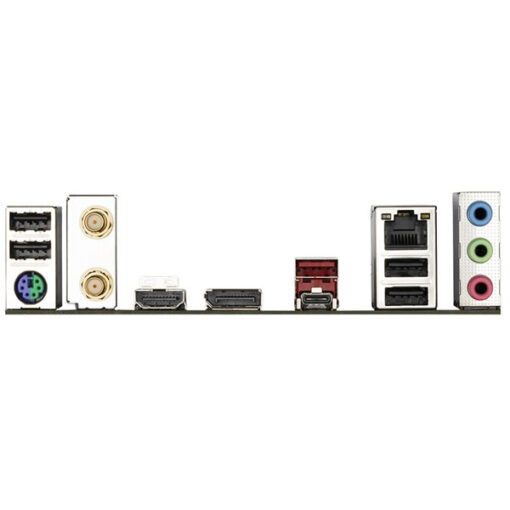

- Back PS/2 Keyboard/Mouse Port:1
- Back USB 2.0 Port(s):4
- Back USB 3.2 Port(s) Type-A Gen 2:1
- Back USB 3.2 Port(s) Type-C Gen 2×2:1
- Back HDMI Port(s):1
- Back DisplayPort(s):1
- Back LAN Port(s):1
- Back Audio Jack(s):3
- Back Other Port(s):2 x SMA antenna connectors (2T2R)
- 24-pin ATX Power:1
- 8-pin ATX Power:1
- USB 2.0 Header(s):2
- USB 3.2 Header(s) Gen 1:2
- Thunderbolt AIC Connector(s):2
- COM Port Header(s):1
- Front Panel Audio Connector:1
- TPM Header(s):1
- Internal Other Port(s):
- 2 x Addressable LED strip headers
- 2 x RGB LED strip headers
- Internal Button(s):
- 1 x Q-Flash Plus
- 1 x Reset
- Form Factor:Standard ATX
- Product Width:244mm
- Product Length:305mm
- Package Width:27.5cm
- Package Length:34cm
- Package Height:8cm

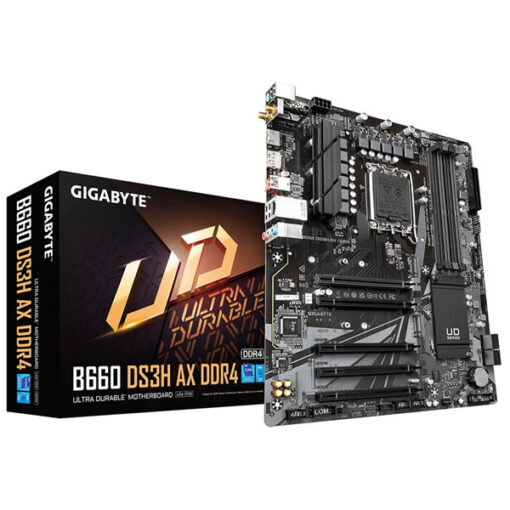

Gigabyte 1700 B660 DS3H AX
£159.00
- Chipset: B660
- Ram Slots: 4
- Wifi: Yes
- M.2 Ports: 2
Out of stock
