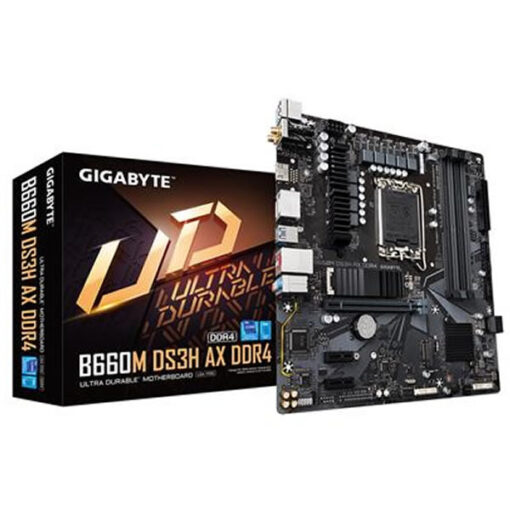

Name: Gigabyte 1700 B660M DS3H AX
SKU: 210000003552
Price: 135.00 GBP
Availability: OutOfStock

Chipset: Intel B660
CPU Interface: Socket 1700
CPU Support: https://www.gigabyte.com/Motherboard/B660M-DS3H-AX-DDR4-rev-1x/support#support-doc
RAM Technology: DDR4 (Dual Channel)
RAM Slots: 4 x 288-pin
RAM Speeds: Up to DDR4 3200
Max. Memory Support: 128GB
PCI Express 3.0 x16: 1
PCI Express 4.0 x16: 1
S-ATA III Port(s): 4
RAID: Raid 0/1/5/10
M.2 Socket(s): 2 x PCIe Gen 4.0 x4
On-Board LAN: Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless NIC: Wi-Fi 6
Wireless Technology: WIFI a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band
Bluetooth: v5.2
On-Board Audio: Realtek Audio CODEC
On-Board Video: Intel processor with integrated graphics is required

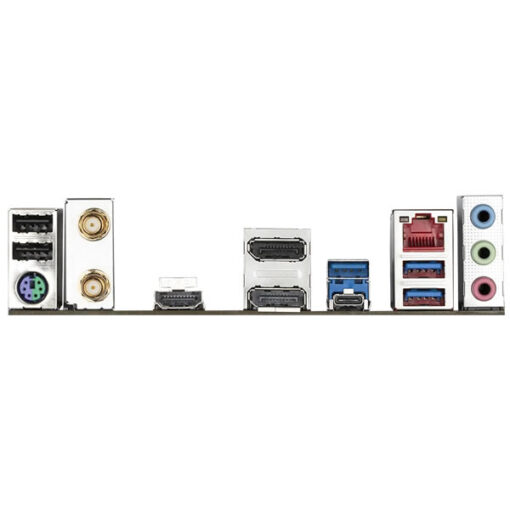

Back PS/2 Keyboard/Mouse Port: 1
Back USB 2.0 Port(s): 2
Back USB 3.2 Port(s) Type-A Gen 1: 3
Back USB 3.2 Port(s) Type-C Gen 2: 1
Back HDMI Port(s): 1
Back DisplayPort(s): 2
Back LAN Port(s): 1
Back Audio Jack(s): 3
Back Other Port(s): 2 x SMA antenna connectors (2T2R)
24-pin ATX Power: 1
8-pin ATX Power: 1
USB 2.0 Header(s): 2
USB 3.2 Header(s) Gen 1: 1
Front Panel Audio Connector: 1
TPM Header(s): 1
S/PDIF Out Header(s): 1
Internal Other Port(s):
- 1 x Addressable LED strip header
- 1 x RGB LED strip header
Internal Button(s):
- 1 x Q-Flash Plus
- 1 x Reset
Form Factor: Micro ATX
Product Width: 244mm
Product Length: 244mm

Gigabyte 1700 B660M DS3H AX
