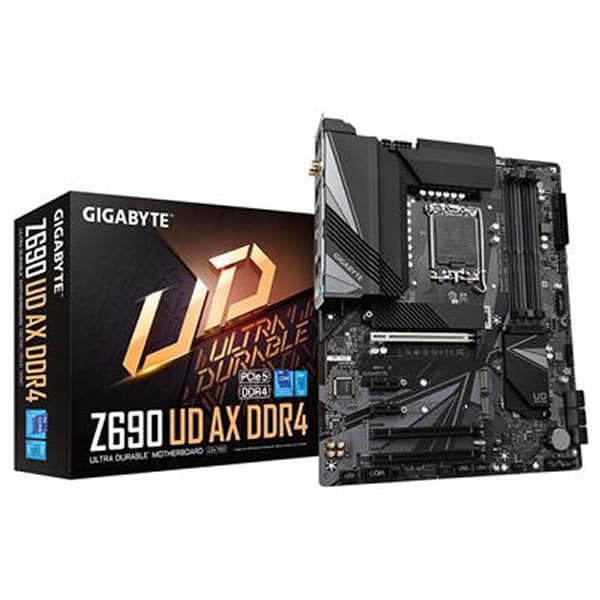

Name: Gigabyte 1700 Z690 UD AX DDR4
SKU: 210000003947
Price: 210.00 GBP
Availability: OutOfStock

Chipset:Intel Z690 Express
CPU Interface:Socket 1700
CPU Support:https://www.gigabyte.com/Motherboard/Z690-UD-AX-DDR4-rev-1x/support#support-cpu
RAM Technology:DDR4 (Dual Channel)
RAM Slots:4 x 288-pin
RAM Speeds:Up to DDR4 5333 (O.C.)
Max. Memory Support:128GB
PCI Express 3.0 x4:2
PCI Express 5.0 x4:1
PCI Express 3.0 x1:2
S-ATA III Port(s):6
RAID:Raid 0/1/5/10
M.2 Socket(s):2 x PCIe Gen 4.0 x4
On-Board LAN:Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless NIC:Intel Wi-Fi 6
Wireless Technology:WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
Bluetooth:v5.2
On-Board Audio:Realtek Audio CODEC
On-Board Video:Intel processor with integrated graphics is required

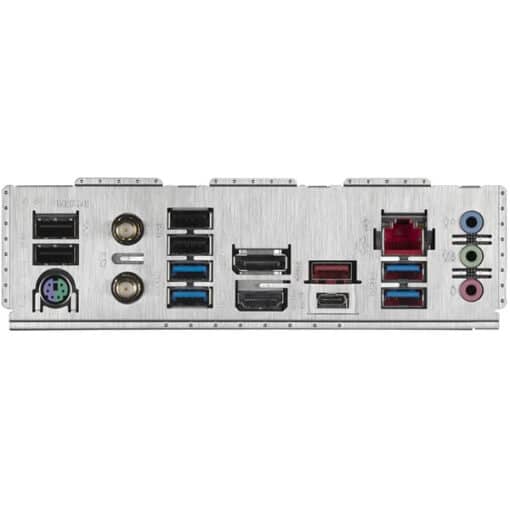

Back PS/2 Keyboard/Mouse Port:1
Back USB 3.2 Port(s) Type-A Gen 1:4
Back USB 3.2 Port(s) Type-A Gen 2:1
Back USB 3.2 Port(s) Type-C Gen 2×2:1
Back HDMI Port(s):1
Back DisplayPort(s):1
Back LAN Port(s):1
Back Audio Jack(s):3
Back Other Port(s):2 x SMA antenna connectors (2T2R)
24-pin ATX Power:1
8-pin ATX Power:1
4-pin ATX Power:1
USB 2.0 Header(s):2
USB 3.2 Header(s) Gen 1:2
Thunderbolt AIC Connector(s):2
COM Port Header(s):1
Front Panel Audio Connector:1
TPM Header(s):1
S/PDIF Out Header(s):1
Internal Other Port(s):
- 2 x Addressable LED Strip Headers
- 2 x RGB LED Strip Headers
Internal Button(s):
- 1 x Reset
- 1 x Q-Flash Plus
Form Factor:Standard ATX
Product Width:244mm
Product Length:305mm

Gigabyte 1700 Z690 UD AX DDR4
