- Chipset: Intel Z690 Express
- CPU Interface: Socket 1700
- CPU Support: https://www.aorus.com/motherboards/Z690-UD-AX-rev-10/Support
- RAM Technology: DDR5 (Dual Channel)
- RAM Slots: 4 x 288-pin
- RAM Speeds: Up to DDR5 6000 (O.C.)
- Max. Memory Support: 128GB
- PCI Express 3.0 x16: 2
- PCI Express 5.0 x16: 1
- PCI Express 3.0 x1: 2
- S-ATA III Port(s): 6
- RAID: Raid 0/1/5/10
- M.2 Socket(s): 3 x PCIe Gen 4.0 x4
- On-Board LAN: Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
- Wireless NIC: Intel Wi-Fi AC 9560
- Wireless Technology: WIFI a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band
- Bluetooth: v5.1
- On-Board Audio: Realtek Audio CODEC
- On-Board Video: Intel processor with integrated graphics is required

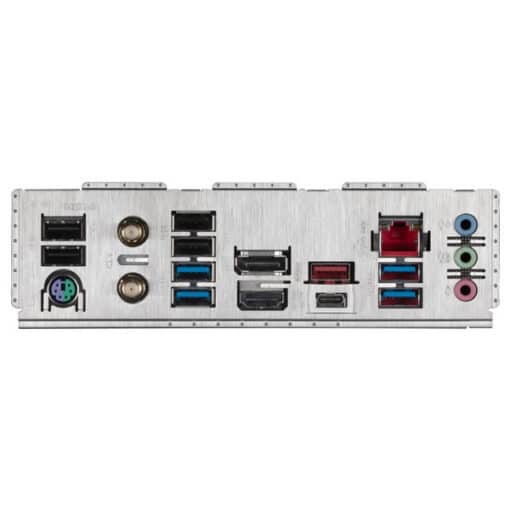

- Back PS/2 Keyboard/Mouse Port: 1
- Back USB 2.0 Port(s): 4
- Back USB 3.2 Port(s) Type-A Gen 1: 4
- Back USB 3.2 Port(s) Type-A Gen 2: 1
- Back USB 3.2 Port(s) Type-C Gen 2×2: 1
- Back HDMI Port(s): 1
- Back DisplayPort(s): 1
- Back LAN Port(s): 1
- Back Audio Jack(s): 3
- Back Other Port(s): 2 x SMA antenna connectors (2T2R)
- 24-pin ATX Power: 1
- 8-pin ATX Power: 1
- 4-pin ATX Power: 1
- USB 2.0 Header(s): 2
- USB 3.2 Header(s) Gen 2: 2
- Thunderbolt AIC Connector(s): 2
- COM Port Header(s): 1
- Front Panel Audio Connector: 1
- TPM Header(s): 1
- S/PDIF Out Header(s): 1
- Internal Other Port(s):
- 2 x Addressable LED strip headers
- 2 x RGB LED strip headers
- Internal Button(s):
- 1 x Reset
- 1 x Q-Flash Plus
- Form Factor: Standard ATX
- Product Width: 244mm
- Product Length: 305mm

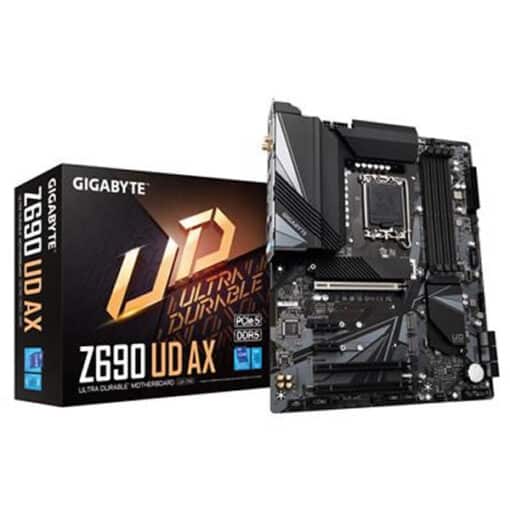

Gigabyte 1700 Z690 UD AX DDR5
£200.00
- Chipset: Z690
- Ram Slots: 4
- Wifi: Yes
- M.2 Ports: 3
Out of stock
