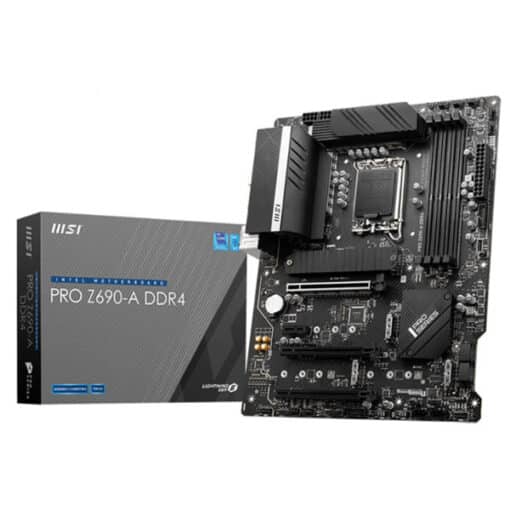

MSI 1700 Pro Z690-A

Name: MSI 1700 Pro Z690-A
SKU: 210000003463
Price: 230.00 GBP
Availability: OutOfStock

£230.00

Out of stock

Available for Click And Collect Only

SKU: 210000003463 Category: Uncategorised

Chipset: Intel Z690
CPU Interface: Socket 1700
CPU Support: https://www.msi.com/Motherboard/support/PRO-Z690-A#support-main-block-qvl
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 4 x 288-pin
RAM Speeds: Up to DDR5 6400 (O.C.)
Max. Memory Support: 128GB
PCI Express 3.0 x16: 2
PCI Express 5.0 x16: 1
PCI Express 3.0 x1: 1
S-ATA III Port(s): 6
RAID: Raid 0/1/5/10
M.2 Socket(s):
- 2 x PCIe Gen 4.0 x4
- 1 x SATA/PCIe 3.0 x4
- 1 x SATA/PCIe 4.0 x4
On-Board LAN:1 x Intel I225-V 2.5Gbps LAN
On-Board Audio: Realtek ALC897 Codec
On-Board Video: Intel processor with integrated graphics is required

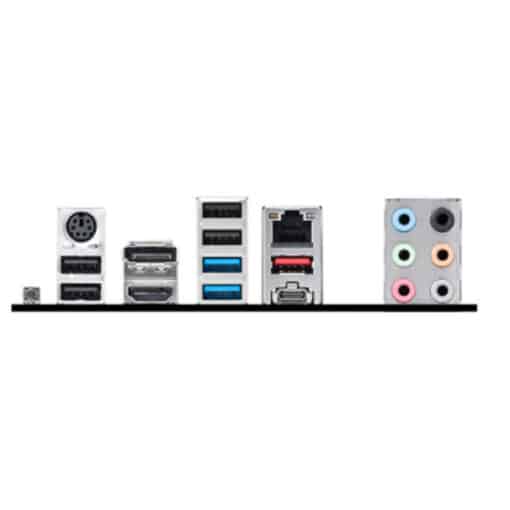

Back PS/2 Keyboard/Mouse Port: 1
Back USB 2.0 Port(s): 4
Back USB 3.2 Port(s) Type-A Gen 1: 2
Back USB 3.2 Port(s) Type-A Gen 2: 1
Back USB 3.2 Port(s) Type-C Gen 2×2: 1
Back HDMI Port(s): 1
Back DisplayPort(s): 1
Back LAN Port(s): 1
Back Audio Jack(s): 5
Back Button(s): 1 x Flash BIOS
24-pin ATX Power: 1
8-pin ATX Power: 2
USB 2.0 Header(s): 2
USB 3.2 Header(s) Gen 1: 2
USB 3.2 Header(s) Gen 2: 1
Front Panel Audio Connector: 1
TPM Header(s): 1
Internal Other Port(s):
- 1 x Tuning controller connector
- 1 x TBT connector (Supports RTD3)
- 1 x 4-pin RGB LED connector
- 2 x 3-pin RAINBOW LED connectors
- 4 x EZ Debug LED
Form Factor: Standard ATX
Product Width: 244mm
Product Length: 305mm
